Pivot axis - Clio 2 - RENAULT

€77.70

RENAULT Clio 2

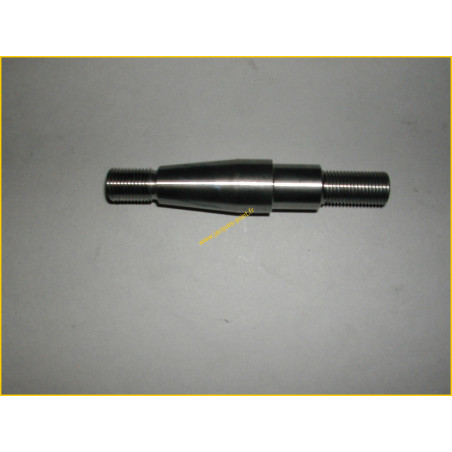

Pivot axis.

Choose OPTION According to model.

Details below.

No. 1: GF2000 axis.

No. 2: Circuit axis.

No. 3: Rally axis.

Valid GF2000:

No. 4: Circuit KIT.

No. 5: Rally KIT.

No. 6: KIT on ball joint.

Price for 1 axis or 1 KIT.

OPTION: OPTION N°2
Quantity

100% secure payments

OPTION #1:

Pivot axis RENAULT Clio 2 GF2000

Diameter 16 - M16x150

Ref. RECL2AXE16GF2000

OPTION #2:

RENAULT Clio 2 CUP pivot axis

M12x125

Long circuit version. 117mm.

OPTION #3:

RENAULT Clio 2 CUP pivot axis

M12x125

Long Rally version. 99mm.

RENAULT CLIO 2 CUP PIVOT PINS FOR GF2000 – NEW ASSEMBLY

We offer you a new assembly for your pivot axis, here are our findings:

- The conical upper section which is in the hub carrier is too weak considering its length, this place is sensitive, the axles tend to deform.

- The cone machined in the hub carrier can be damaged with a damaged axle, the housing is no longer conical and when the axle is changed it is not in an optimal position. It is therefore a vicious circle because the axle will deform and damage the hub carrier again and the axle will be replaced….

We are not offering you one but two new assemblies, the important point is that you will have to machine your cone on the hub carrier to bring it to a diameter of 18. This allows you to increase the section of the axle inserted in the hub carrier. hub thus eliminating the sensitive point.

OPTION #4:

RENAULT Clio 2 CUP KIT Assembly Pivot Axis Circuit version

  • 1 x Ø16 pivot axis.
  • 1 x Upper ring.
  • 1 x specific M16x150 lock nut.

OPTION #5:

RENAULT Clio 2 CUP GF2000 KIT Mounting Pivot Axis Rally version

  • 1 x Ø16 pivot axis.
  • 1 x Upper ring.
  • 1 x lower ring.
  • 1 x Lock nut M16x150.

OPTION #6:

RENAULT Clio 2 CUP GF2000 KIT Mounting Pivot axis on ball joint

  • 1 x Ø16 pivot axis.
  • 1 x Upper ring.
  • 2 x High Travel Spacers
  • 1 x Lock nut M16x150.
RECL2CUPAXECIRCUIT
10 Items

Data sheet

Composition
30CND8
Property
Raw
